CHOOSE YOUR IDEAL RFID Label
OSRFID is a company that provides RFID Inlay&Label solutions. We focus on the development and manufacturing of soft HF/NFC/UHF labels and inlays. We have a 9,000 square meter factory and offer competitive factory prices.
Inlays are the key to label performance. They are composed of antenna structures and chips. We use inlay images inside the labels to represent label products. Inlays with different antenna structures and chip models can meet the needs of different application scenarios. You can consult our RFID experts according to your needs.
We only develop inlays and soft labels (supplement: paper cards and PVC labels, cloth labels can also be made). We also support ODM and OEM, and can customize the substrate, glue, and printing process of various labels.
You can contact us to get free samples. Or refer to the article on label selection recommendations to choose an ideal label.
Product search
Showing 1–10 of 80 results
-

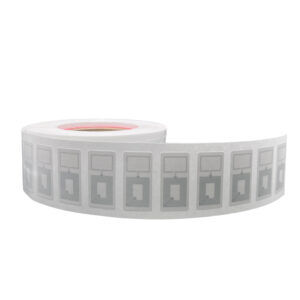

43X20-S01-P Datasheet-OSRFIDDownloadInquiryApplications: NFC,Gaming and Toys,Product AuthenticationDetailsProduct OS-4320-FM13HS01-P NFC Fragile Tag Tamper Label Antenna Size(mm) 43*20mm Chip FM13HS01-P Frequency: 13.56MHz HF/NFC User Memory 896Bits Die-cut Dimension 50*25mm Application NFC,Gaming and Toys,Product Authentication -

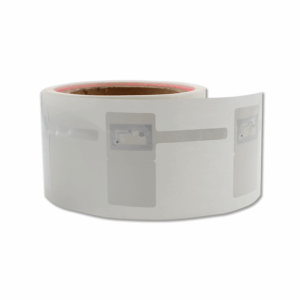

Download fileDownloadInquiryApplications: Cable management / Wires / WarehouseDetailsProduct OS-7556-LED Antenna Size(mm) 25*15mm Chip FM13HS01N Frequency: 13.56MHz HF/NFC User Memory 1024 Bits Die-cut Dimension 75*56mm Application Cable management; Asset Management; Inventory Tracking; Files&Documents -

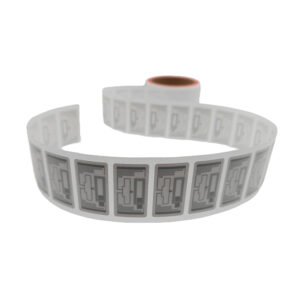

Download fileDownloadInquiryApplications:Retail, electronics, food and beverages, PharmaDetailsProduct OS5125-NTAG Antenna Size(mm) 45.6*21mm Chip NTAG213TT Frequency 13.56MHz HF; NFC Formats Dry Inlay, Wet Inlay, Label Applications Retail, electronics, food and beverages, Pharma -

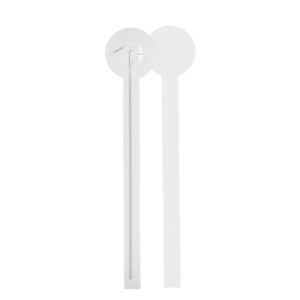

119.6X21mm-NTAG213TT Datasheet-OSRFIDDownloadInquiryApplications:Wine,Product AuthenticationDetailsProduct NFC OS119.6X21mm-NTAG 213TT for Wine Antenna Size(mm) 119.6*21mm Chip NTAG213TT Frequency 13.56MHz HF; NFC Formats Dry Inlay, Wet Inlay, Label Applications Wine,Product Authentication -

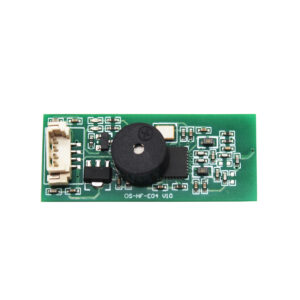

OSHFA01 EnglishDownloadInquiryApplications:NFCDetailsCommunication interface UART TTL232 (9600-115200bps) 5V Power 5V max 100mA（related requirements for reading distance） Protocols ISO/IEC 14443A (MF1 S50、MF1 S70、Ntag21x) Read/write speed 106kbit/s 212kbit/s 424kbit/s Read range Up 0 to 50 mm Size 35mm (L) x15mm (W) x 8mm (H) -
OS4020 EM4425 UHF&NFC RFID Inlay/Label/StickerDownloadInquiryApplications：Warehousing management Logistics and TransportationDetailsProduct OS4020 EM4425 UHF&NFC RFID Inlay/Label/Sticker Antenna Size(mm) 40*20 mm Chip EM4425 Delivery formats Dry Inlay; Wet Inlay; Label/Sticker Applications Warehousing management;Logistics and Transportation -

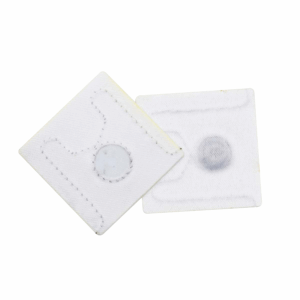

Data SheetDownloadInquiryApplications:Industrial washing/Management of uniformsDetailsProduct OSL3535 Item number OS38241 Tag Size(mm) 35*35mm Chip Quanray Qstar 6S Material Polyester Thickness 1.1 mm(0.04 in)on chip location only, Rest of tag is 0.85 mm(0.03 in) Installation Sewing:Sewn inside the hem or pouch Washing Method Laundry, Dry cleaning Water Extraction pressure 60 bars Washing Temperature 90°C (194°F)/15 minutes Pre-drying in Tumble 180°C (356°F)/30 minutes Ironing Tempereature Ironing Tempereature Sterilization Tempereature 135°℃ (275°F)/20 minutes Humidity/ Temperature-Operating -20~+85℃（-4~185℉）/ 8-95%RH Personalization Serial number, LOGO printing, Encoding, etc Applications Industrial washing/Management of uniforms/Medical apparel management/Military clothing management -

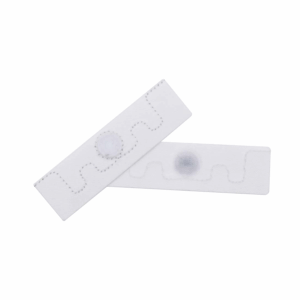

Data SheetDownloadInquiryApplications:Industrial washing/Management of uniformsDetailsProduct OSL7020 Item number OS38242 Tag Size(mm) 70*20mm Chip Quanray Qstar 6S Material Polyester Thickness 1.1 mm(0.04 in)on chip location only, Rest of tag is 0.85 mm(0.03 in) Installation Sewing:Sewn inside the hem or pouch Washing Method Laundry, Dry cleaning Water Extraction pressure 60 bars Washing Temperature 90°C (194°F)/15 minutes Pre-drying in Tumble 180°C (356°F)/30 minutes Ironing Tempereature Ironing Tempereature Sterilization Tempereature 135°℃ (275°F)/20 minutes Humidity/ Temperature-Operating -20~+85℃（-4~185℉）/ 8-95%RH Personalization Serial number, LOGO printing, Encoding, etc Applications Industrial washing/Management of uniforms/Medical apparel management/Military clothing management -

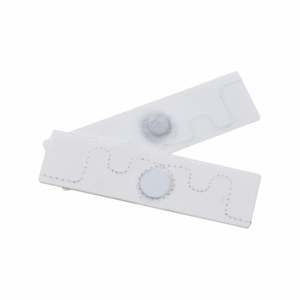

OSL7020 UHF&NFC RFID Laundry Tag(Sewing) EM4425Data SheetDownloadInquiryApplications:Industrial washing/Management of uniformsDetailsProduct OSL7020 Item number OS38243 Tag Size(mm) 70*20mm Chip EM4425 Material Polyester Thickness 1.1 mm(0.04 in)on chip location only, Rest of tag is 0.85 mm(0.03 in) Installation Sewing:Sewn inside the hem or pouch Washing Method Laundry, Dry cleaning Water Extraction pressure 60 bars Washing Temperature 90°C (194°F)/15 minutes Pre-drying in Tumble 180°C (356°F)/30 minutes Ironing Tempereature Ironing Tempereature Sterilization Tempereature 135°℃ (275°F)/20 minutes Humidity/ Temperature-Operating -20~+85℃（-4~185℉）/ 8-95%RH Personalization Serial number, LOGO printing, Encoding, etc Applications Industrial washing/Management of uniforms/Medical apparel management/Military clothing management -
Download FileDownloadInquiryApplications: NFC / Access Control / EventsDetailsProduct RFID Events Wristband ANTENNA SIZE(mm) 55*17mm Chip Ntag213 Protocol ISO/IEC 14443 Type A NFC Forum Type 2 Tag User Memory 144Bytes UID Memory 7Bytes IC Life 100,000 programing cycles/50 years data retention
1. Understanding RFID Labels
For new users or end brand customers, start by grasping the fundamentals of RFID labels. This includes understanding the different types of labels, the distinction between white labels and inlays, label categorization methods, label structure, the benefits of RFID tags over traditional tags, and more. Visit our RFID FAQ summary page for a quick overview.
2. Exploring RFID Applications
If you have a basic understanding of RFID tags but need more information about specific application scenarios, explore our categorized application scenarios and tag recommendations.
- RFID Products For The Automotive Sector
- Retail RFID Application Guide
- Warehouse Logistics RFID Common Product Models
- What Are The More Popular Labels In The Medical Field?
- How to Choose RFID Label for Book?
3. For Experienced RFID Users
Experienced RFID customers can directly download OSRFID’s related documents to quickly grasp our product line, technical expertise, and competitive advantages.
