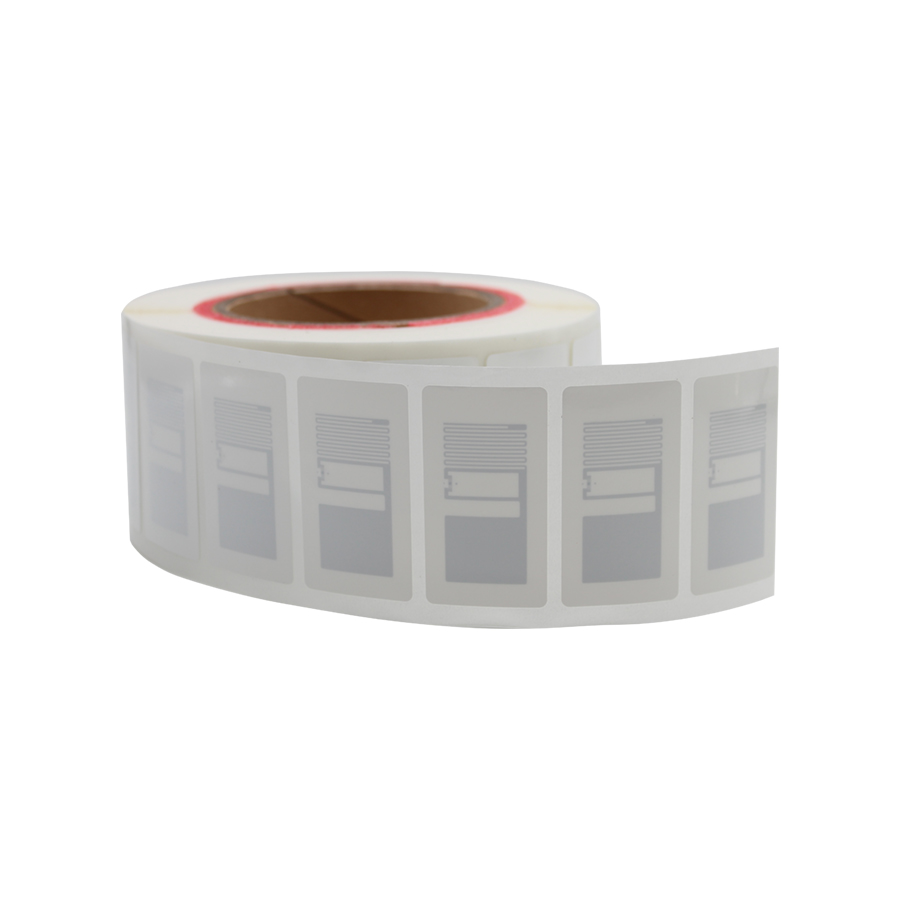

OS2040-UCODE UHF RFID Flag Inlay/Label/Sticker
OVERVIEW:
This antenna is designed for Medical applications. Its high efficiency and excellent performance make it widely used in medical packages field etc.
1. Tag Selection
The RFID tags for high-value consumables mainly utilize vertical RFID tags to avoid interference from metals and liquids during the reading process.
In terms of tag selection, we recommend adopting Monza R6 and NXP UCODE8 series chips, which are known for their high sensitivity and easy recognition.

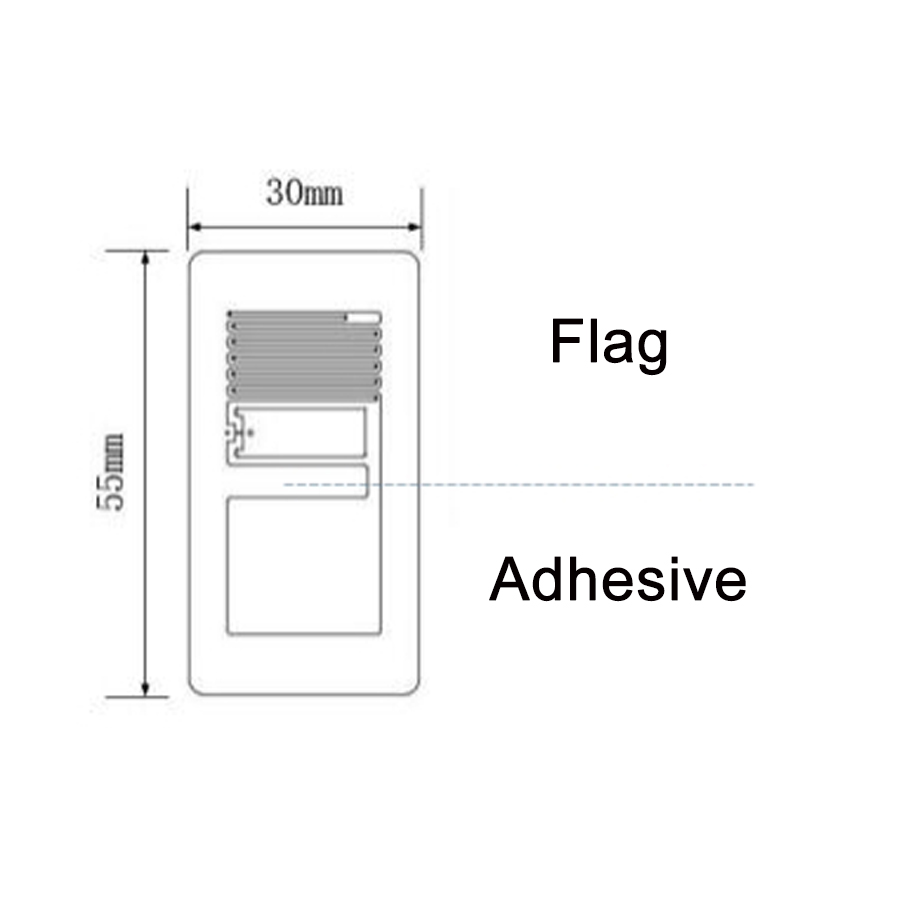

As shown in the figure, the adhesive area of the tag can be enlarged according to printing requirements to meet the needs of printing content. Alternatively, RFID and printing paper can be attached separately.
2. Tag Installation
The installation of tags primarily adopts a vertical attachment method that keeps them away from metals or liquids. For boxed consumables, it is recommended to attach the tag from the front. For bagged consumables, where there are often overlapping scenarios, it is advisable to attach the tag to the top.
Attention for Aluminum Foil Packaging: All consumables with aluminum foil packaging must be attached with the tag separately, away from the packaging. Some high-value consumables have paper outer boxes, but the internal packaging uses aluminum foil metal packaging. These consumables also require the tags to be attached separately, away from the metal.
[ Tips ]
| Product | OS2040-U9 |
|---|---|
| Antenna Size(mm) | 40*20mm |
| Chip | NXP UCODE 9;NXP UCODE 8; NXP UCODE 9xe; NXP UCODE 9xm |
| Frequency | UHF 860~960MHz |
| EPC Memory | 128Bits/96Bits |
| TID Memory | 96Bits |
| Format | Dry Inlay; Label/Sticker |
| Application | On-Metal Asset Tracking, Metal and Liquids, Supply Chain Management |
Why Choose OSRFID?
- OSRFID is one of the largest RFID inlay&label manufacturers in China
- OSRFID has a production capacity of one billion inlays per year
- OSRFID use the Mühlbauer DDA 40K WF to produce the RFID inlay
- OSRFID use the Voyantic Tagformance to test RFID inlay and label
- OSRFID can produce the eco-friendly RFID products.
- OSRFID has the strong chips supply chain, main RFID chips brands are our strategic partners.
- In addition, we can provide the euivalent/alternative chips to solve the chip shortage problem
