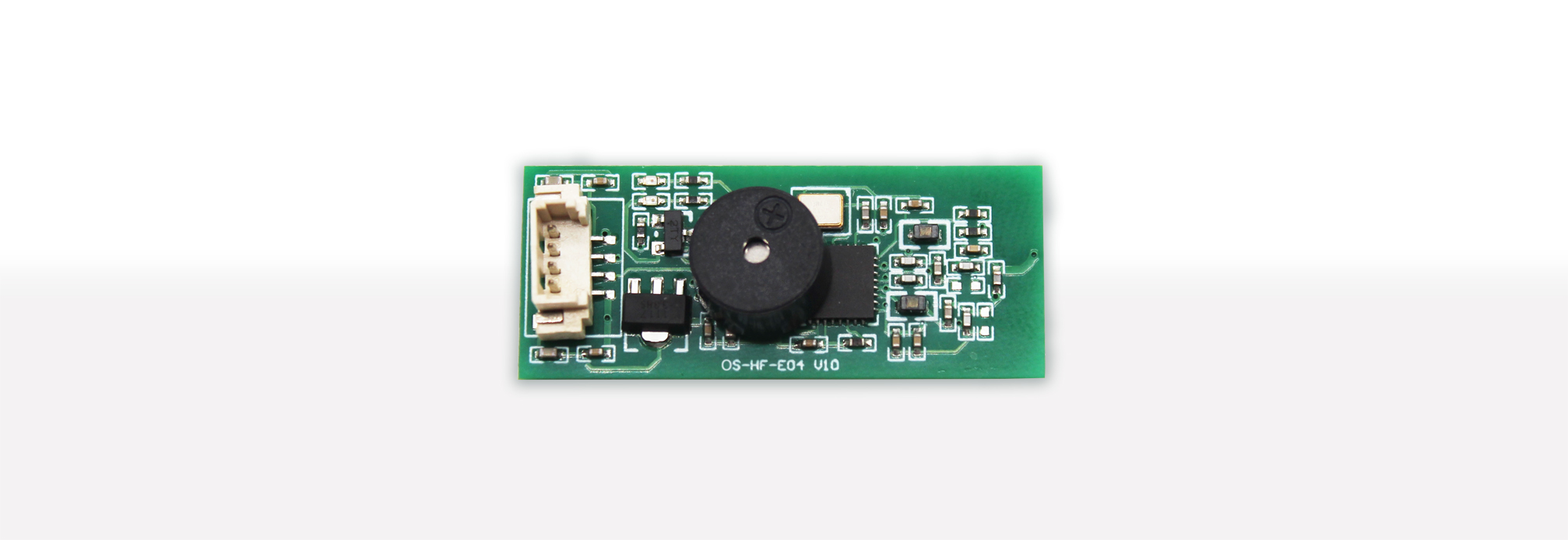

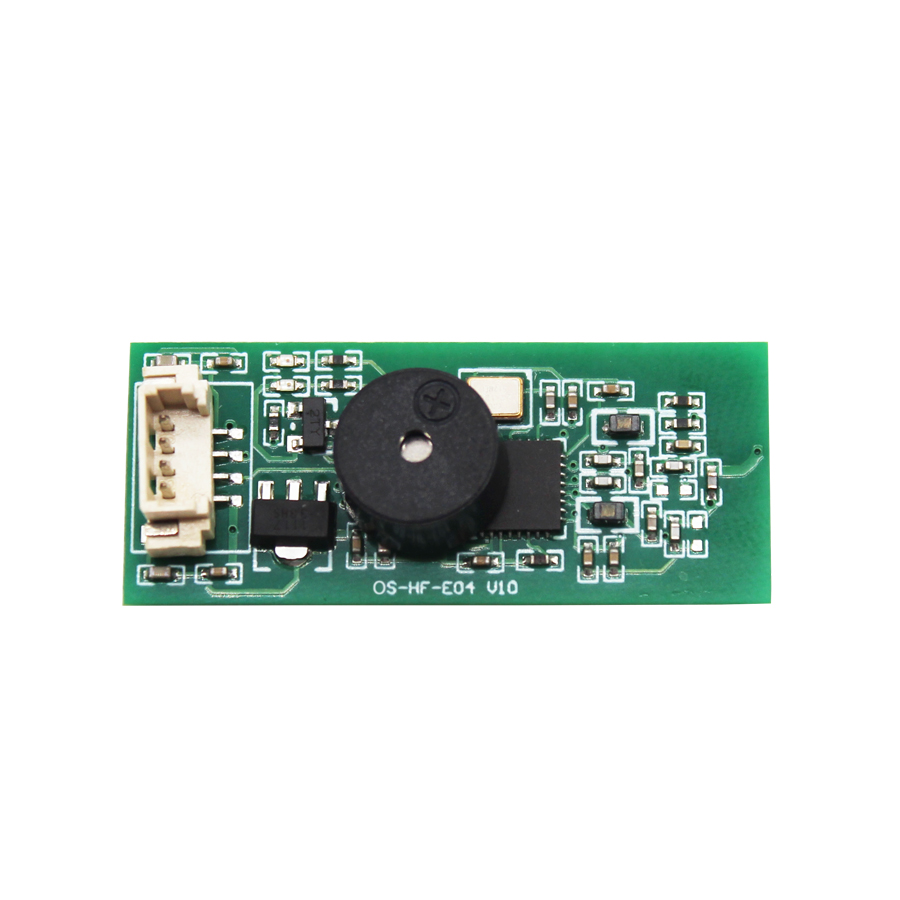

OSHFA01 Module
Applications:NFC
OVERVIEW:
This is a NFC reader module capable of reading and writing Mifare chips ,Mifare compatible chips and Ntag21x chips.
description
Product parameter
Download document
description
This is a NFC reader module capable of reading and writing Mifare chips ,Mifare compatible chips and Ntag21x chips.
When a label/tag approaches the module, the module actively read it via serial port.
It also supports reading and writing Mifare chip sector data, as well as full-featured operation of Ntag21x series chips.
The reader antenna is integrated into the module, resulting in a small size, simple communication protocol, and high cost-effectiveness. Customization to other 14443A/B and 15693 protocol chips is also available.
- Reading distance <= 50mm (depending on specific application)
- Supports reading various Mifare and compatible chips.
- Automatic card detection; actively read the chipsupon detection.
- Supports serial port output and Wiegand output.
- Reads and writes M1 chipsector data and Ntag21x series chip data.
- Supports storing operation passwords within the module, enhancing data security.
[ Tips ]
OSRFID is a Chinese manufacturer with over 20 years of experience in the RFID industry, specialising in R&D of RFID inlays and tags. Our RFID labels have been exported to the world.
To explore more about our products, please download the lists below or contact us.
Product parameter
| Communication interface | UART TTL232 (9600-115200bps) 5V |
|---|---|
| Power | 5V max 100mA（related requirements for reading distance） |
| Protocols | ISO/IEC 14443A (MF1 S50、MF1 S70、Ntag21x) |
| Read/write speed | 106kbit/s 212kbit/s 424kbit/s |
| Read range | Up 0 to 50 mm |
| Size | 35mm (L) x15mm (W) x 8mm (H) |
Download document
Why Choose OSRFID?
- OSRFID is one of the largest RFID inlay&label manufacturers in China
- OSRFID has a production capacity of one billion inlays per year
- OSRFID use the Mühlbauer DDA 40K WF to produce the RFID inlay
- OSRFID use the Voyantic Tagformance to test RFID inlay and label
- OSRFID can produce the eco-friendly RFID products.
- OSRFID has the strong chips supply chain, main RFID chips brands are our strategic partners.
- In addition, we can provide the euivalent/alternative chips to solve the chip shortage problem
