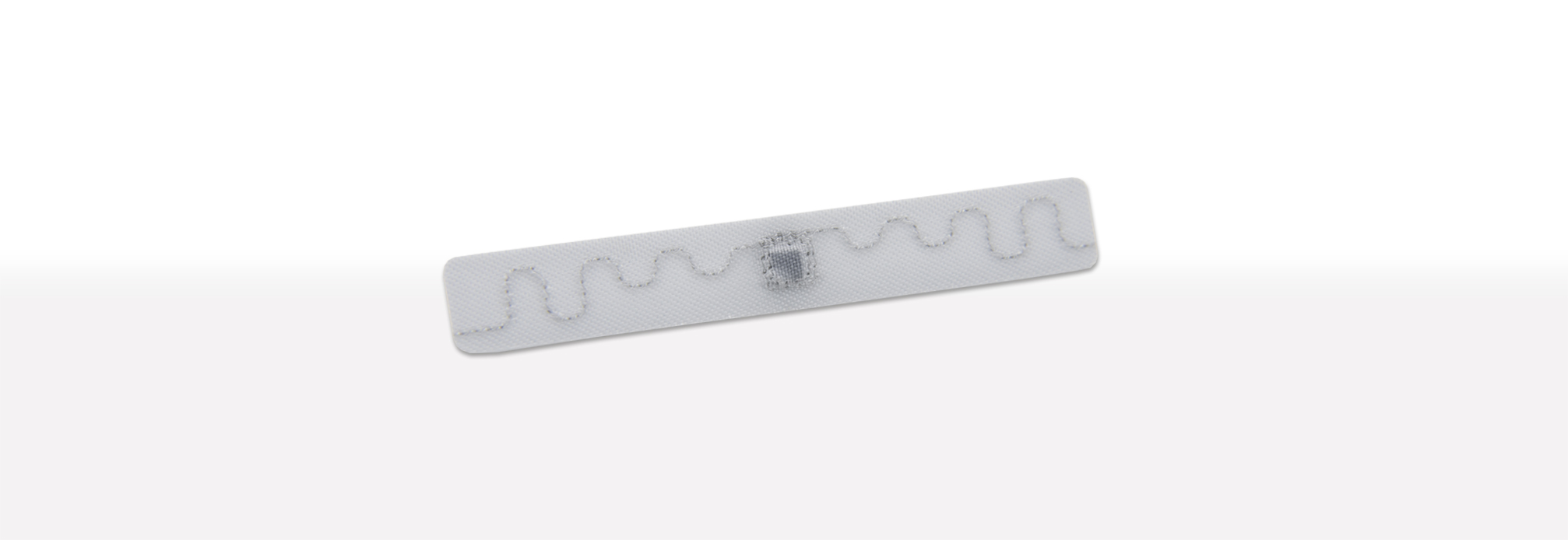

OSL7010 UHF RFID Laundry Tag(Sewing)
OVERVIEW:
The tag can withstand more than 200 industrial washing cycles,with thin thickness,long reading distance,pressure and high temperature resistance.
UHF RFID Laundry Tags
OS38249 is a tag based on flexible antenna and woven, is a UHF laundry tag, special for linen laundry management. The tag can withstand more than 200 industrial washing cycles, with thin thickness, long reading distance,pressure and high temperatureresistance. The laundry tag has a unique global identification code, by sewing/hot pressing a tag on each piece of linen. In the entire use of linen, users can do batch reading and check the linern pretty quickly by RFID reader, automatically record the use of linen, washing times. It will make the handover of washing tasks simple and transparent, and greatly improves the efficiency of inventory inspection by the UHF laundry tag. Meanwhile, users can predict the service life of the current linen and make purhcase plans through the data collection of washing times.
Applications
UHF laundry tags can also be called UHF linen tags. Their applications are not limited to laundry, but can be extended to other areas. For example, they can be used in asset management, logistics management, and healthcare to track and manage items.
Here are some examples of UHF linen tag applications in other areas:
- Asset management: UHF linen tags can be used to track and manage items such as linens and napkins in hotel rooms.
- Logistics management: UHF linen tags can be used to track and manage goods in logistics.
- Healthcare: UHF linen tags can be used to track and manage medical equipment and devices.
[ Tips ]
| Product | OSL7010 |
|---|---|
| Item number | OS38249 |
| Tag Size(mm) | 70*10mm |
| Chip | NXP UCODE 9xe |
| Material | Polyester |
| Thickness | 1.1 mm(0.04 in)on chip location only, Rest of tag is 0.85 mm(0.03 in) |
| Installation | Sewing:Sewn inside the hem or pouch |
| Washing Method | Laundry, Dry cleaning |
| Water Extraction pressure | 60 bars |
| Washing Temperature | 90°C (194°F)/15 minutes |
| Pre-drying in Tumble | 180°C (356°F)/30 minutes |
| Ironing Tempereature | Ironing Tempereature |
| Sterilization Tempereature | 135°℃ (275°F)/20 minutes |
| Humidity/ Temperature-Operating | -20~+85℃(-4~185℉)/ 8-95%RH |
| Personalization | Serial number, LOGO printing, Encoding, etc |
| Applications | Industrial washing/Management of uniforms/Medical apparel management/Military clothing management |
Why Choose OSRFID?
- OSRFID is one of the largest RFID inlay&label manufacturers in China
- OSRFID has a production capacity of one billion inlays per year
- OSRFID use the Mühlbauer DDA 40K WF to produce the RFID inlay
- OSRFID use the Voyantic Tagformance to test RFID inlay and label
- OSRFID can produce the eco-friendly RFID products.
- OSRFID has the strong chips supply chain, main RFID chips brands are our strategic partners.
- In addition, we can provide the euivalent/alternative chips to solve the chip shortage problem
